Additional information
| Weight | 55 kg |
|---|---|
| Dimensions | 68 × 66 × 60 cm |
Home / Operator
Electron
£6,495
500 in stock
At Renderboxes, we constantly strive to push the boundaries of what is possible in personal workstation performance. Our latest creation, the Electron, is a testament to our commitment to excellence. Combining cutting-edge airflow technology, rock-solid stability, and unparalleled reliability, the Electron represents the next level in compact, high-performance workstations. With just enough room for expansion to keep up with the demands of even the most demanding users, the Electron is the ultimate choice for those who refuse to settle for anything less than the best.
- CPU: Intel i9 13900KF 24 Core
- GPU: 1x Nvidia Geforce RTX 4090 24GB (Max 2x)
- Storage: 2x 1TB NVMe Gen 4
- Memory: 96GB DDR5 5200Mhz (2x 48GB)
- Cooling System: Air
Related products
CPU
Raptor-Lake is Intel’s incredible 13th generation processors. Now with up to 24 cores (8 Performance-cores and 16 Efficient-cores) and up to 32 threads, plus Performance-cores are capable of reaching 5.8 GHz6 with Intel® Thermal Velocity Boost to elevate performance. Intel® Turbo Boost Max Technology 3.07 further strengthens lightly threaded performance by identifying the best-performing Performance-cores.
GPU
Our systems feature Nvidia™ graphics cards exclusively. We offer either the Quadro and Tesla enterprise model or the raw power of the Geforce series. Never before in a workstation has such high density of GPU’s been available with massive airflow and extra wide spacing to keep them from overheating and thermal throttling. The Renderboxes range of machines are hands down the optimal choice for 3D workflows and high powered rendering without the need for rackmount solutions that need server rooms to operate in.
Memory
The Electron system is powered by high speed DDR5 DIMMS. scalable from 96GB up to 192GB via 4x memory slots.
Airflow Design
No other workstation or render-node in a desktop configuration has offered such a refined airflow design as the Renderboxes lineup. In the Atom, airflow is concentrated exactly where it’s needed due to its compact design. GPU’s are mounted directly behind intakes and the lid serves as an outlet. On the Nano we have taken this design further and decoupled the GPU’s into their own separate ‘GPU chamber’ and cool them down away from all other components. Finally the Molecule expands on this even further with either Liquid cooling for near silent operation or the AIR with 18x fans cooling up to 8 way GPU, all powered by Noctua Industrial fans for guaranteed reliability and service.
PCIe Connectivity
Our revolutionary PCIe decoupling solution is completely unique to our chassis design. With technology taken from the enterprise space and reimagined for workstation use we have gained results never seen before in GPU cooling with sustained maximum load stability and reliability in multi GPU configurations. We looked at the temperature and heat buildup that modern, power hungry GPU’s were consuming, then with data collected it was apparent that densely packed multiple GPU’s alongside high powered processors and chipsets were suffocating each other under heavy workloads. No other workstation on the planet has this level of PCIe technology or multi GPU support in a super quiet form factor that sits under your desk.
Build Features
Renderboxes prides itself in making sure every build is pieced together with absolute care and attention to detail by our skilled technicians. From custom made cabling, managed for ease of service and as little airflow restriction as possible. Our shipping crates are designed to ensure your system arrives exactly how it leaves our workshop. Once you are up and running our support is second to none, featuring three years on all parts, one year of full return to base labour and unlimited telephone, remote and email support we are here whenever you need us.
Chassis Design
The chassis is in our eyes is just as important to the user experience as the components it holds. Our design is both striking and minimal in sight and has been crafted in the UK by professional, sheet metal fabricators.
Using only the highest grade folded and formed aluminum we couple this with our ease of use magnetised grill panels to hold our bespoke micro particle filters that incorporate one thin layer of filtering mesh to maximise the airflow to dust trapped ratio.
This offers the least resistance to airflow and cause less turbulence than any of the other materials used in computer air filters. This ensures that high air flow and supply is maintained while filtering out the harmful dust and debris from the system, ensuring longevity and maximum reliability.
System Cooling
Our cooling solution is one of our key features and we have painstakingly designed a system that operates at its lowest speeds to keep your workstation super quiet when in operation. It monitors all system vitals from the CPU to the GPU core, internal chassis temperatures and external ambient temperatures thus allowing the cooling management system to know what to cool down and when, expelling annoying continuous fans spinning when they are simply not needed, prolonging the life of the hardware and operating as efficiently as possible.

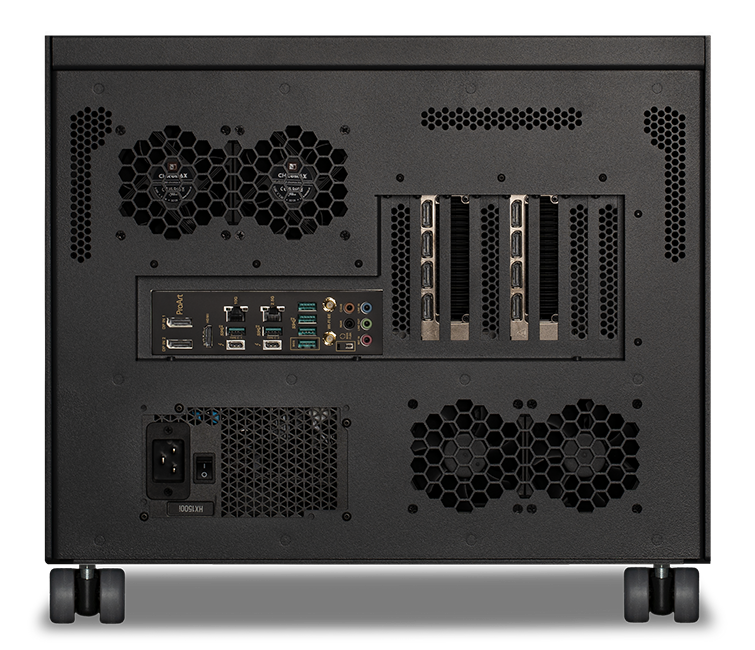

Connectivity
2x Thunderbolt™ 4 Type-C | 4x USB 3.2 Gen2 | 6x USB 3.2 Gen1 | Front panel USB Type-C
7.1 CH HD Audio | 10Gb/s LAN | Intel® 802.11ax (WiFi 6E) + Bluetooth | HDMI + Displayport
Dimensions + Weight
41cm Height x 46cm Width x 46cm Depth
Approx. 35 Kg
Power Consumption
1x Platinum 1500 watts power supplies
Intel i9 13900KF 24 core | 96GB DDR5 Memory | 2x 1TB NVMe | 1x Nvidia RTX 4090 24GB
(baseline configuration used as example under 100% continuous load with CPU and GPU rendering enabled)
Approx. 750 Watts
