Configure Your

Molecule AIR

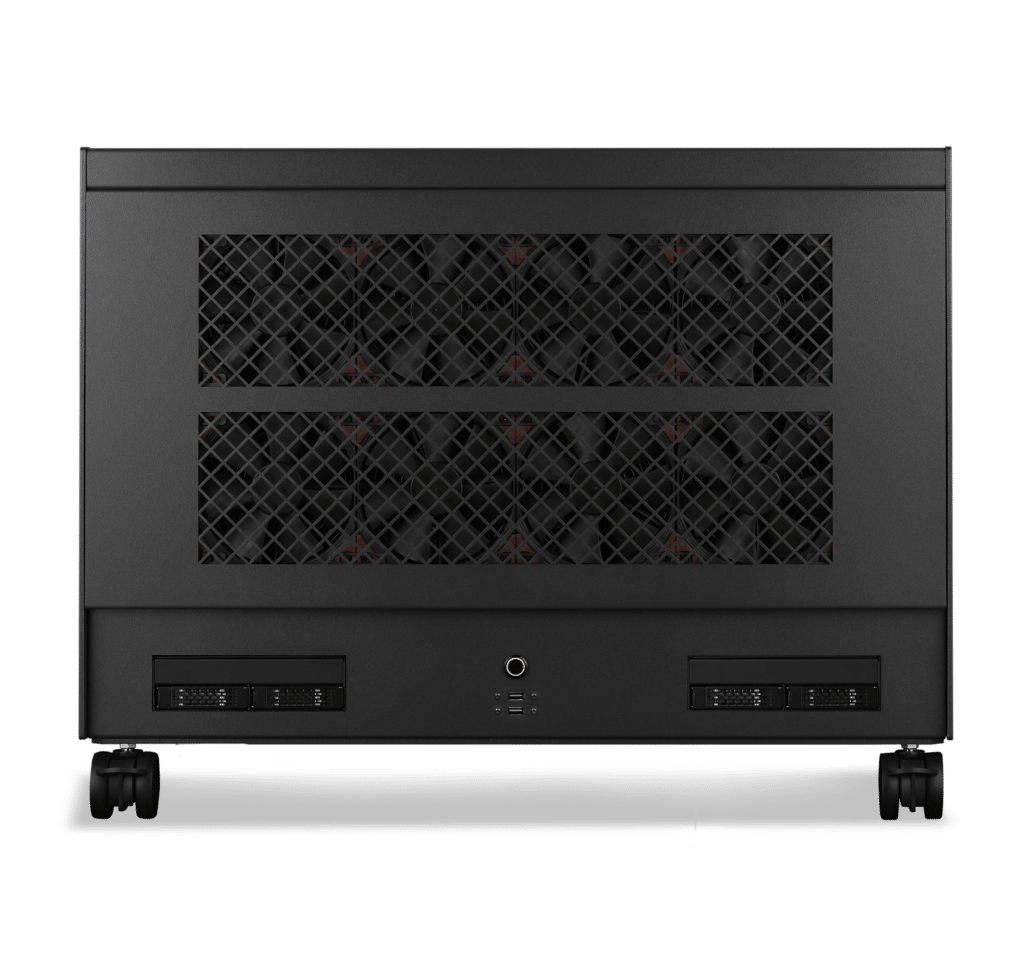

The Molecule Air, designed to deliver unparalleled GPU compute power in a rugged and highly serviceable 8-way GPU form factor. Initially designed to be the ultimate virtual production rig, the Air is incredibly versatile and built to handle non-stop render action. With advanced cooling technology, including up to 96 core Threadripper Pro technology with closed loop liquid cooling, the Molecule Air keeps the GPU temperature under control, enabling the system to operate at maximum performance without any thermal throttling. Whether you are a 3D artist, game developer, or a team in need of extreme GPU power, the Molecule Air is the ultimate choice for your high-performance computing needs. *3 week build time*

Core System

Learn more

CPU

Learn more

RAM

Learn more

GPU

Learn more

NVMe Drive 1

Learn more

NVMe Drive 2

NVMe Drive 3

NVMe Drive 4

NVMe PCIe RAID

U.2 Drive 1

Learn more

U.2 Drive 2

USB-C PCIe Adapter

Learn more

Operating System

Learn more

Warranty / Support

Subtotal:

Ex. VAT

Subtotal:

Ex. VAT

Sub Total

Ex. VAT

Save Quote

Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.

Need Help?

Have more questions about your configuration? Need professional assistance? We are here to help!

Contact Us
CPU

AMD Threadripper Pro Processors are based on 7nm process technology, delivering an unmatched CPU core density for professional workloads.
Additionally, the WRX90 platform supports 128 PCIe 5.0 lanes enabling a variety of advanced configurations leveraging next-gen GPUs and storage devices. Our systems can provide 16 cores all the way up to 96 Cores and all with massive L2 and L3 cache and fine tuned to provide every last bit of performance for your workflow.

GPU

Our systems feature Nvidia™ graphics cards exclusively. We offer either the Quadro and Tesla enterprise model or the raw power of the Geforce series. Never before in a workstation has such high density of GPU’s been available with massive airflow and extra wide spacing to keep them from overheating and thermal throttling. The Renderboxes range of machines are hands down the optimal choice for 3D workflows and high powered rendering.

Memory

Our systems are powered by enterprise grade registered ECC DDR5 DIMMS. Scalable from 64GB up to 2.0TB and with the Threadripper Pro CPU allowing up to 8 channel bandwidth there is no other workstation CPU and memory combination thats comes close.

Storage

NVMe Gen 4 M.2 x 2 / NVMe Gen 4 U.2 x 2

System Cooling

The Molecule Air is cooled via a 360mm closed loop Asetek AIO liquid cooler and Noctua Industrial 120mm fans.

Our cooling solution is one of our key features and we have painstakingly designed a system that operates at its lowest speeds to keep your workstation super quiet when in operation and monitors all system vitals from the CPU to the GPU core, internal chassis temperatures and external ambient temperatures. Thus allowing the cooling management system to know what to cool down and when, expelling annoying continuous fans spinning when they are simply not needed, prolonging the life of the hardware and operating as efficiently as possible.

Connectivity

2x Thunderbolt™ 4 Type-C | 4x USB 3.2 Gen2 | 5x USB 3.2 Gen1
7.1 CH HD Audio | 2x 10Gb/s LAN | 1x Dedicated IPMI LAN
Intel® 802.11ax (WiFi 6E) + Bluetooth | HDMI + Displayport

Dimensions + Weight

52cm Height x 66cm Width x 45cm Depth
Approx. 45 Kg

Power Consumption

3x Platinum 1500 watts power supplies
Threadripper Pro 7995WX | 256GB ECC Memory | 2x 2TB NVMe | 8x Nvidia RTX 6000 Ada 48GB
(baseline configuration used as example under 100% continuous load with CPU and GPU rendering enabled)
Approx. 3200 Watts

Warranty

3 years on all parts, 1 year return to base on all labour.
Unlimited tech support via remote/email/tel

Asus WRX90 SAGE SE motherboard manual
